Sensors

Sensors Half Header
Autoscope Vision - Black Logo

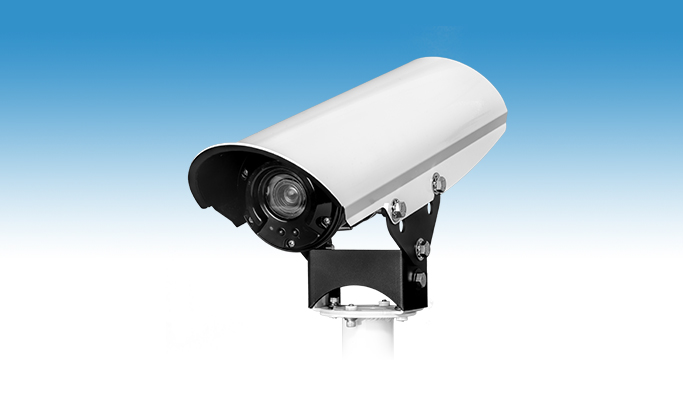

Autoscope Vision

Autoscope Vision is an integrated high-definition (HD) camera-processor sensor solution that delivers the highest levels of accuracy and performance for stop bar vehicle detection, bicycle detection and differentiation, advance vehicle detection, traffic data collection, and HD video surveillance.

Vision-lft face-sensors_683x415

AIS – IV

The Autoscope Image Sensor (AIS)-IV is a lightweight color zoom camera system designed for the rigors and performance requirements of vehicle detection at virtually all traffic intersection and highway environments. AIS-IV provides new levels of strategic traffic information, supporting the latest Intelligent Transportation System (ITS) programs

TotalVu

TotalVu HD

TotalVu HD is a video viewer software whose main function is to display a tile of multiple camera streams or video feeds. It can display matrices from 1×2 (2 streams) up to 3×4 (12 streams). The source video for each tile of a matrix can be an RTSP stream from Autoscope Vision, other RTSP cameras, or pre-recorded video such as an mp4 or an avi file.

comm

Comm Manager

The Autoscope Vision Comm Manager is a powerful device facilitating remote and local communication to deployed Autoscope Vision sensors. The Vision Comm Manager supports 3-wire-only branch cable connections for up to 8 sensors, interfaces to the optional Vision I/O 24™ module, as well as full 10/100/1000 Ethernet communication to a local laptop or workstation at the Traffic Management Center (TMC).

I/O 24

Vision I/O 24 Module

The Autoscope Vision I/O 24 module provides a simple, reliable interface between the Vision Comm Manager and any standard traffic controller via discrete I/O’s to the traffic cabinet. It monitors phase colors and gathers detection data information from up to four Vision sensors. The Vision I/O 24 Module is a single card device that can be placed in a standalone enclosure or detector rack

rack pro 1 & 2

RackVision™ Pro 1 & 2

RVP1 & RVP2 our cost-effective vehicle detection solutions are designed to address agency needs for intersection control to advance detection. Autoscope sensors, as well as existing CCTV or other video detection cameras, provide the needed video signal. In addition to detecting vehicles, the RVP2 detects bicycles in all lanes of travel.

dem114

DEM 114

The Detector Expansion Module Subordinate (DEM114) is used with the Detector Expansion Module Main (DEM144), provides a simple solution to wiring detector outputs to a NEMA TS1, Type 170, or 2070 cabinet where access to the detector input termination points is limited or when the controller software cannot reassign detector inputs. Each DEM114 distributes up to four additional outputs from a TAP or RackVision Terra units.

dem144

DEM 144

The Detector Expansion Module Main (DEM144) provides a simple solution to wiring detector outputs into a NEMA TS1, Type 170, or 2070 cabinet where access to the detector input termination points is limited or when the controller software cannot reassign detector inputs. The DEM144 distributes up to four outputs from its rear edge connector. With the addition of the Detector Expansion Module Subordinate (DEM114) modules, can distribute up to four additional groups of four outputs per module.

Autoscope

Vision | AIS – IV | TotalVu | Comm Manager | Vision I/O 24

 RackVision Pro 1 & 2 | DEM114 | DEM144

Overview

Advanced Traffic Control

Econolite’s vehicle detection solutions continue to play a critical role in helping ITS deliver on the promise of enhanced public safety, reduced congestion, shorter travel times, lowered environmental impacts, and increased cost savings for all roadway users.

Autoscope graphic 2

Datasheets & Specifications

  • Autoscope Vision Datasheet
View All

What is Autoscope?

At A Glance

As the complexities of traffic management increase, ITS strategies are valuing more and more the multi-tasking capabilities of intelligent detection sensors to not only accurately detect traffic at the stop bar to trigger a signal change, but to count, classify, track, and even provide advanced detection for traffic adaptive systems and dilemma zone safety applications. Today’s multi-modal intersections and roadways require the multi-modal capabilities of leading-edge detection sensors to provide capabilities such as bicycle and pedestrian detection and differentiation

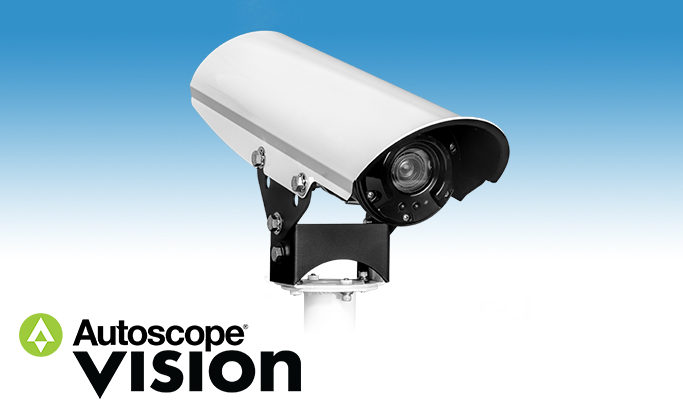

Vision

Features
  • Traffic Video Detection Camera
  • Highest levels of accuracy and performance for the Advanced Traffic Management System
  • Bicycle and Pedestrian Detection
  • Built-in local WiFi for quick and simple set up
  • Program an entire intersection in just minutes
  • Easy to install with 3-wires-only
  • Simple integration to all traffic cabinets
  • High Definition (HD) camera for superior video images
  • 2 gore breathers
Autoscope Vision - Black Logo
AIS / IV right

AIS – IV

Features
  • Advanced Traffic Management Detection
  • Designed for most wide-area machine vision vehicle detection applications
  • Low maintenance
  • Low power consumption
  • Rugged, environmentally sealed enclosure
  • Auto-gain circuitry for improved detection in varying light conditions
  • Hydrophilic faceplate coating
  • No streaking or blooming from bright light sources (headlights)

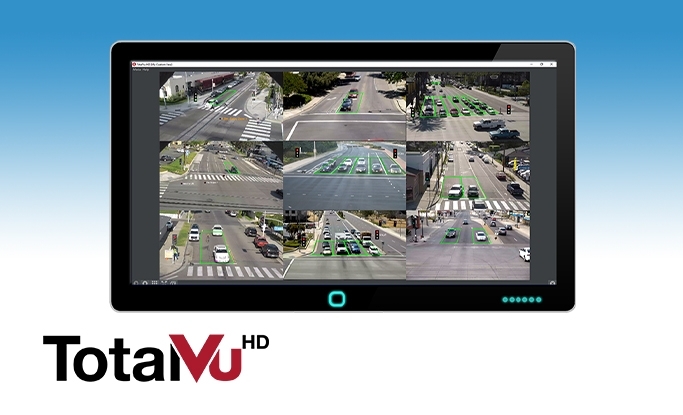

TotalVu

Features
  • Auto-sync with Vision Camera listing in Autoscope Supervisor Software
  • Drag and drop to rearrange streams in a view
  • Double-click to set any video to full-screen
  • Alternate full-screen through each video
  • Save snapshots of individual video images or of the full matrix view
  • Set up hierarchical groups of views
TotalVu
comm

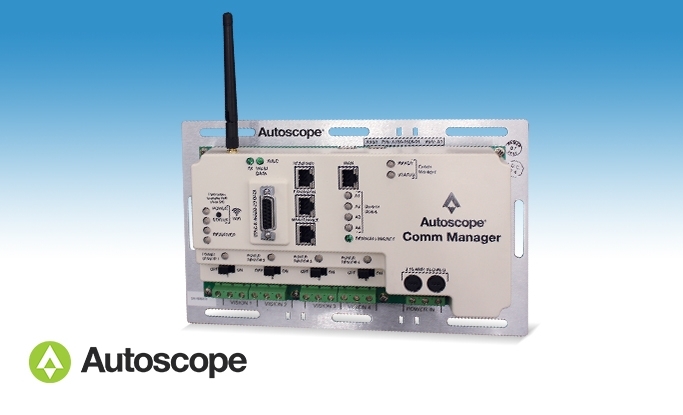

Comm Manager

Features
  • Space saving support for 1-8 cameras
  • Single IP Address for agency network integration
  • Secure 802.11g Wi-Fi access point, password protected,  on-off pushbutton
  • 1000ft cable distances between sensor and Comm Manager

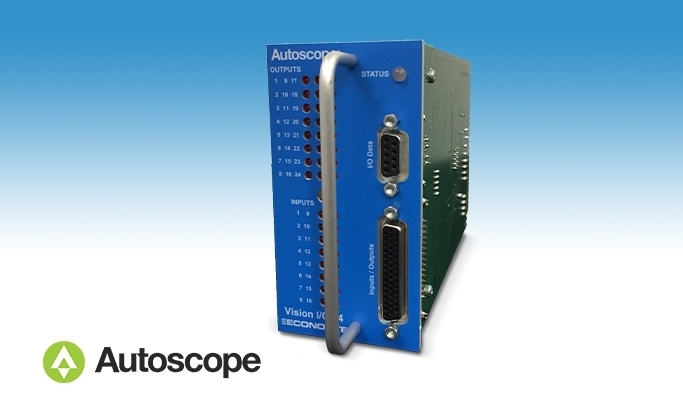

Vision I/O 24

Features
  • 24 outputs, 16 inputs
  • Capable of emulating a 4-channel loop detector
  • Multi-cabinet use
  • Versatile support of wired I/O, Expansion Modules and C1Y Harness
I/O 24
rack pro 1 & 2

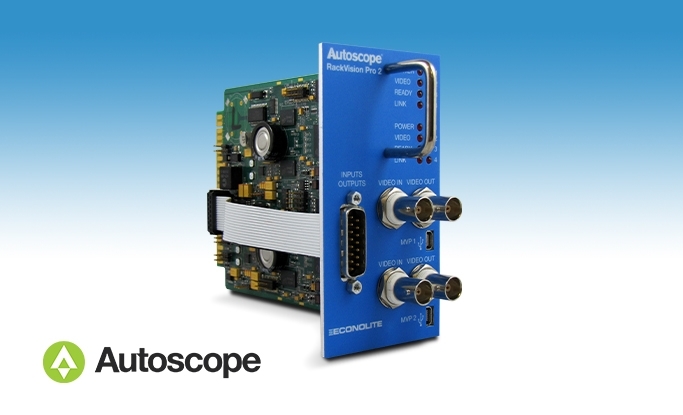

RackVision™ Pro 1 & 2

Features
  • Provides basic video vehicle detection for intersection stop-line and advance extension applications
  • Bicycle detection
  • Installs in a standard detector rack or self-contained shelf-mount unit
  • Software installation by USB flash drive
  • Comprehensive traffic data collection
  • Self-test on power-up

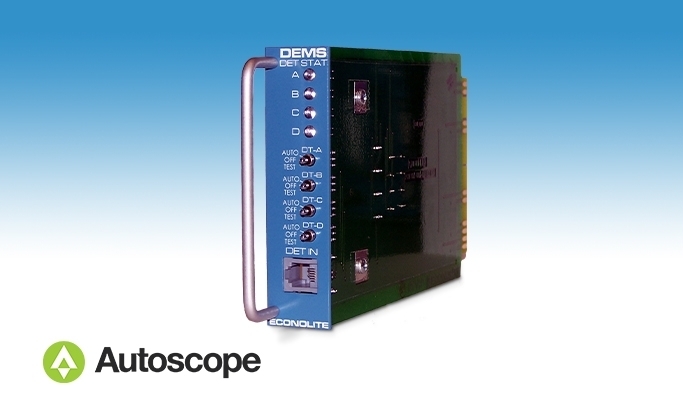

DEM 114

Features
  • Up to four detector outputs to DEM114 rear edge connector for a Traffic Detection System
  • RJ-11 port allows four inputs from DEM144
  • Single slot width form factor with handle
  • Four output LED
  • Four three-position switches (Auto, Off, and Test)
  • Four circuit board jumpers to bypass switches
dem114
dem144

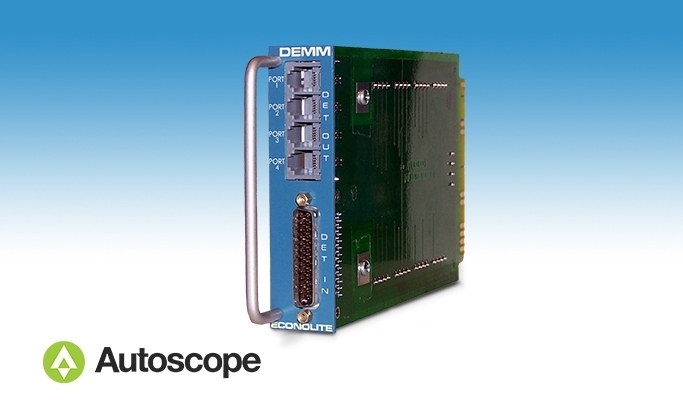

DEM 144

Features
  • Up to 16 detector inputs from RackVision Terra unit on front panel 25 pin connector for a Traffic Detection System
  • Up to four detector outputs to DEM144 rear edge connector (emulates four channel loop detector output)
  • Four RJ-11 ports route and up to four additional groups of four detector outputs to other detector rack slots using DEM114
  • Single slot width form factor with handle

The Econolite Advantage

Traffic Video Detection Camera and broadband communications technologies continue to help inspire and generate new levels of Advanced Traffic Management System capabilities. This will be even more critical as connected vehicle and Smart City technologies become more prevalent, particularly vehicle-to-infrastructure (V2I) and data analytics.  Whether for surveillance, vehicle detection, bicycle detection and differentiation, data collection, or traffic monitoring systems, video detection and broadband communications are increasing Advanced Traffic Management System performance, cost efficiencies, and access to strategic traffic information – helping transportation professionals improve safety, reduce vehicle emissions, and mitigate traffic congestion.


Econolite’s vehicle detection solutions continue to play a critical role in helping ITS deliver on the promise of enhanced public safety, reduced congestion, shorter travel times, lowered environmental impacts, and increased cost savings for all roadway users.
