Controllers

Controllers Left Header

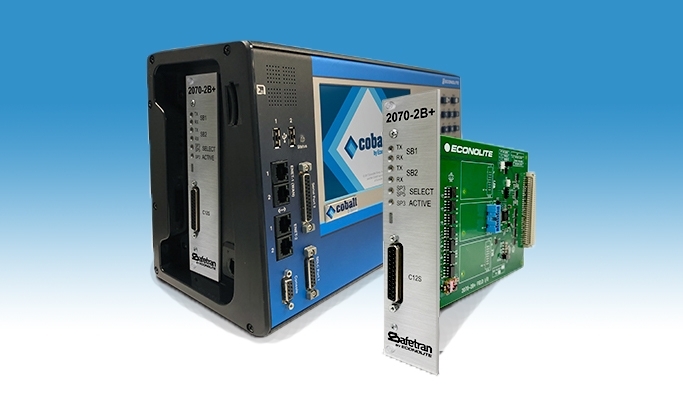

20702b+ blue back

2070 2B+

Safetran 2070-2B+, a 2070 TEES compliant, two-channel, SDLC serial module, provides a traffic controller with the necessary interfaces to operate a NEMA TS2 or ATC cabinet. This provision also enables an ATC cabinet configuration for an ATC controller in a NEMA shelf-mount form factor.

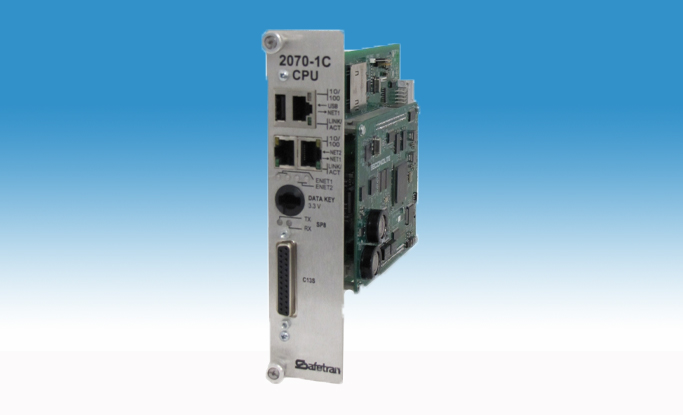

2070 1c blue back

2070-1C

The intelligence behind the signalized intersection is the traffic light controller.  Combined with the traffic cabinet, the controller manages traffic flow and ensures safety for all roadway users.

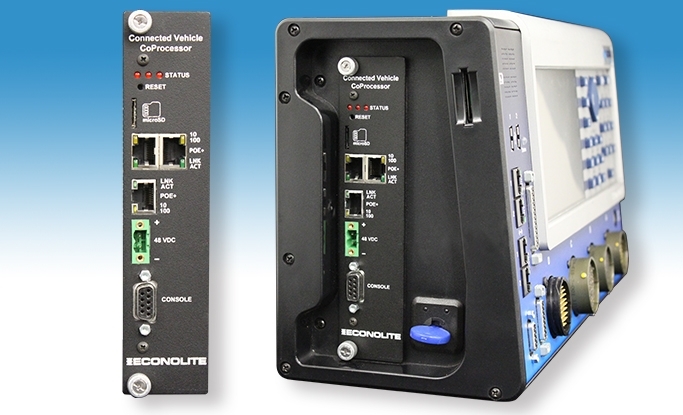

CVCP

CVCP

The Econolite CVCP module provides an enhanced, high-power, processing platform that supports connections between the controller and multiple DSRC devices. It is designed to run third-party, processor-intensive applications in parallel with traffic controller applications running on the ATC Engine Board, including Econolite’s 2070 and Cobalt Series of ATC controllers. The CVCP can also be used in its stand-alone enclosure, making it an ideal tool for connected vehicle R&D.

ATC Controller Modules

2070 2B+ | 2070-1C | CVCP

Overview

Advanced Traffic Control

Helping to ensure safety, the traffic signal controller represents one of the most important intelligent technology and communication components of a signalized intersection. The ATC family of controllers are designed to increase safety and traffic signal operations for years to come.

updated pillars wheel

Datasheets & Specifications

    View All

    What are ATC controllers?

    At A Glance

    The intelligence behind the signalized intersection is the traffic light controller.  Combined with the traffic cabinet, the controller manages traffic flow and ensures safety for all roadway users.

    2070 2B+

    Features
    • Enables an ATC cabinet configuration for an ATC controller in a NEMA shelf-mount form factor
    • Fully TEES compliant
    • Front panel SP3 Active switch and LED
    • SP3 & SP5 or SP1 & SP3 selectable by internal jumper
    • 32-bit ARM microcontroller
    • All C12S signals are optically isolated and EIA-485 compliant
    2070-2B+_controllers_683x415

    2070 1c blue back

    2070-1C

    Features
    • Open architecture traffic light controller design – Linux Real-Time multi-tasking operating system and ATC compliant Board Support Package (BSP)
    • PowerPC with QUICC engine
    • Meets Caltrans TEES 2009 (errata 1 and errata 2) specifications
    • ATC 2070C combines the flexibility of open architecture hardware with the power and performance of our EOS and ASC/3-LX 2070 software package

    Connected Vehicle CoProcessor (CVCP) Module

    Features
    • Supports boundary devices Nitrogen6x-SOM
    • iMX6 quad core processor – 1GHz – 2GB DDR3 DRAM
    • SOM peripheral support
    • Two internal, EIA-485, serial ports supporting asynchronous rates of: 1200, 2400, 4800,9600, 19.2k, 38.4k,57.6k, and 115.2k bps
    • One external, EIA-232, 9-pin asynchronous serial console port located on front panel
    • Integrated 5-port 10/100 managed Ethernet switch
    CVCP

    The Econolite Advantage

    For more than three decades, Safetran (an Econolite Group company) has provided industry leading innovation and service by maintaining a close alignment with its customers. Safetran’s customer focus and employee experience in providing traffic management solutions for New York Department of Transportation (NYDOT), California Department of Transportation (Caltrans), Federal Highway Administration (FWHA), and Transportation Electrical Equipment Specifications (TEES) projects and standards is unequalled in the industry.


    As a result, Safetran provides an ideal combination of flexibility of open architecture hardware with the power and performance of 2070/170 controller software packages.
